Planetary centrifuge technology is a compact, high-energy way to mix, homogenize, and deaerate materials directly in their sealed process containers—without blades, paddles, or exposed agitators.
In a planetary design, the container follows two motions at once: it spins on its own axis while also orbiting around a second axis. This rotation + revolution combination generates strong three-dimensional flow inside the cup, which can drive uniform dispersion and efficient bubble removal in minutes.
What makes a planetary centrifuge different?
Traditional batch mixers rely on an impeller or tool moving through a vessel, which can create dead zones, introduce contamination risks, and leave trapped air that requires a separate vacuum step. A planetary centrifuge takes a different approach: the container becomes the mixing chamber, and motion is applied from the outside.
In laboratory and industrial settings, planetary centrifugal systems are widely described as “no-blade” mixers that combine rotation and revolution to both mix and deaerate. For example, one research institute notes that high-speed rotation and revolution can generate vertical spiral convection that blends and disperses materials while removing air residues in the container (CNR-ISSMC).
Planetary centrifuge workflow: from load to unload
A typical cycle is straightforward:
- Load: Place your sealed process container into the centrifuge cup holder (often with adapters for different container sizes).
- Run: Select a program (speed, time, and optional ramp/step profiles depending on your process).
- Unload: Remove the container ready for the next step—filling, molding, coating, encapsulation, or transfer.
Because the material stays in its original container, you can reduce transfers, simplify housekeeping, and improve repeatability. Many operations also prefer this approach for materials that are sensitive to moisture pickup or require tight control of exposure to the surrounding environment.
Where a planetary centrifuge fits in industrial processing
A planetary centrifuge is used across a range of industrial processing workflows where mixing quality and air removal matter. Common goals include:
- Homogenization: Achieving uniform composition when combining multiple components.
- Dispersion: Breaking up agglomerates and distributing powders or pigments evenly.
- Deaeration: Reducing microbubbles that can cause voids, inconsistent density, or downstream defects.
- Consistency: Tightening batch-to-batch variability with defined time-and-speed programs.
Choosing a planetary centrifuge: capacity, containers, and throughput
When evaluating planetary centrifuge equipment, start with the practical realities of your line:
- Container size and geometry: Your production containers (and lids) should fit the holders and adapters.
- Batch mass and viscosity: Higher viscosity materials typically benefit from more energy input and longer cycles.
- Throughput: Consider cycle time plus load/unload time and how that matches your takt time.
- Process control: Look for repeatable programs, clear operator interface, and maintenance access.

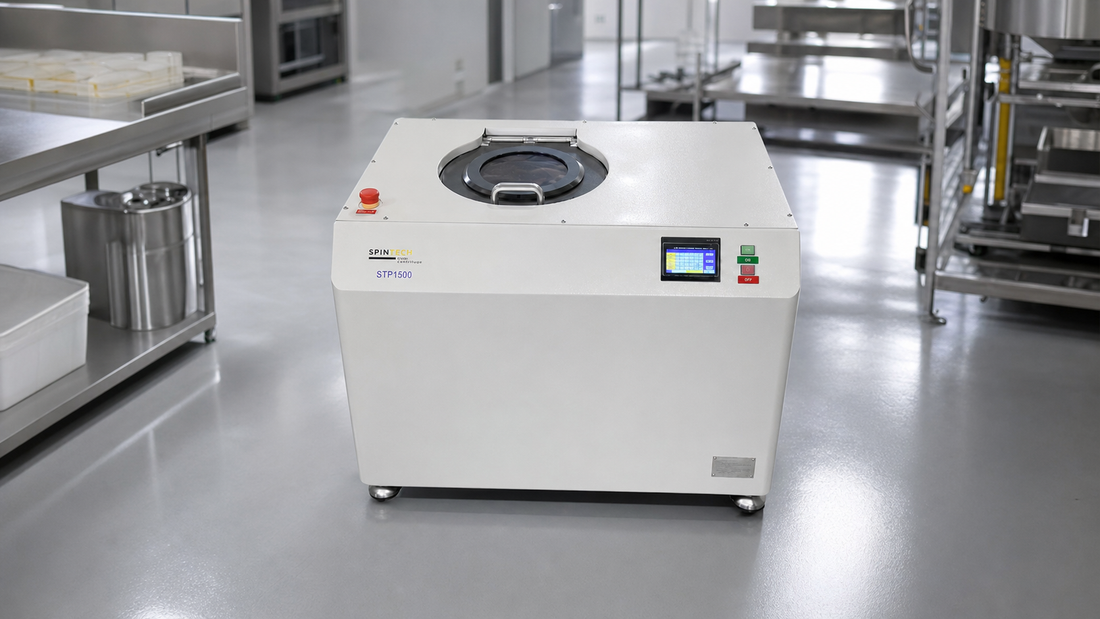

If you are comparing systems in the Spin Tech lineup, you can start with the product pages for the STP-1500 centrifuge and the STP-3000 centrifuge to align capacity with your container sizes and batch targets.
Why the planetary centrifuge design supports repeatable results
Repeatability comes from applying the same motion profile to the same container geometry, with fewer opportunities for variation. Because the process container is sealed and the mixing action is generated by controlled motion rather than an open-tool interaction, operators can standardize cycle parameters and reduce the “art” of manual mixing.
For many facilities, the benefits show up as fewer defects, fewer reworks, and faster changeovers—especially when a product family shares compatible containers and programs.
Next steps
If you are planning to add a planetary centrifuge to your industrial processing workflow, a good next step is to define your target batch size, container dimensions, and the quality problems you want to eliminate (inconsistent dispersion, entrained air, long conditioning time, etc.). From there, it is easier to select a capacity class and run a process trial with a representative material.
