A planetary centrifuge gives processing teams a compact way to combine controlled rotation, repeatable recipes, and efficient material handling in one machine. Unlike equipment that relies on a single simple rotation pattern, a planetary design coordinates the movement of the container and the material inside it. That motion can help teams achieve uniform mixing, release entrained air, and prepare consistent batches while keeping the workflow organized.
Planetary centrifuge design: coordinated motion
The defining feature of a planetary centrifuge is the relationship between the primary rotation and the secondary rotation of the working container. As the container travels around the central axis, it also rotates around its own axis. The combined movement creates strong relative motion throughout the batch instead of concentrating action in only one area.
For industrial processing, that coordinated motion matters because materials can have different viscosities, densities, and particle loads. A well-chosen cycle can encourage the components to move together, reduce gradients, and help operators establish a repeatable starting condition for the next stage. The correct settings still depend on the material, container, fill level, and desired result, so representative trials should guide every recipe.
How a planetary centrifuge supports repeatable processing
Repeatability begins with a defined loading method. Teams should document the container type, fill weight, insert configuration, balance requirements, cycle duration, and control settings. Once those inputs are fixed, operators can run the same sequence from batch to batch and compare results using clear acceptance criteria.
A planetary centrifuge can support this approach by bringing the process into a controlled enclosure with a programmable interface and a consistent container position. The benefit is not simply speed. It is the ability to connect a material recipe to a documented sequence, making it easier to investigate variation and train operators. Keep approved settings in a controlled record, and review them whenever the formulation, container, or target outcome changes.
Planetary centrifuge benefits for air release and uniformity
Air entrainment can complicate filling, coating, casting, and other downstream steps. Planetary movement creates shear and acceleration that may help bubbles migrate through a material during a properly selected cycle. The same motion can improve uniformity in blends that need consistent distribution before inspection or transfer.
These outcomes should be validated rather than assumed. Measure the result that matters to your facility: visual uniformity, density, fill behavior, surface finish, or another process-specific quality attribute. Compare a baseline cycle with adjusted time, speed, and fill level, then select the shortest repeatable cycle that meets the acceptance criteria. This trial-based method helps prevent over-processing and gives quality teams evidence for the final work instruction.
Installation and safe operation considerations
Equipment selection is only one part of a successful installation. Review the available footprint, service clearance, floor condition, electrical requirements, access route, and operator sight lines before delivery. Leave enough room for loading, unloading, cleaning, inspection, and emergency-stop access. A smooth material path reduces unnecessary lifting and keeps containers from being staged in walkways.
Build a start-up checklist that covers lid condition, interlocks, container seating, balance, guards, controls, and visible damage. Operators should never bypass a safety device or open the enclosure while motion is present. Use a documented risk assessment and consult OSHA machine-guarding guidance when defining safeguards, training, and inspection practices for the installation.
Selecting a planetary centrifuge for your facility
Start with the smallest and largest working batches your facility expects to run, then map the cycle frequency, container geometry, and planned production growth. Consider whether the equipment will serve development, quality control, pilot work, or routine production. A compact platform may simplify changeovers and fit a constrained room, while a larger capacity option may reduce repeated loading when batch demand grows.

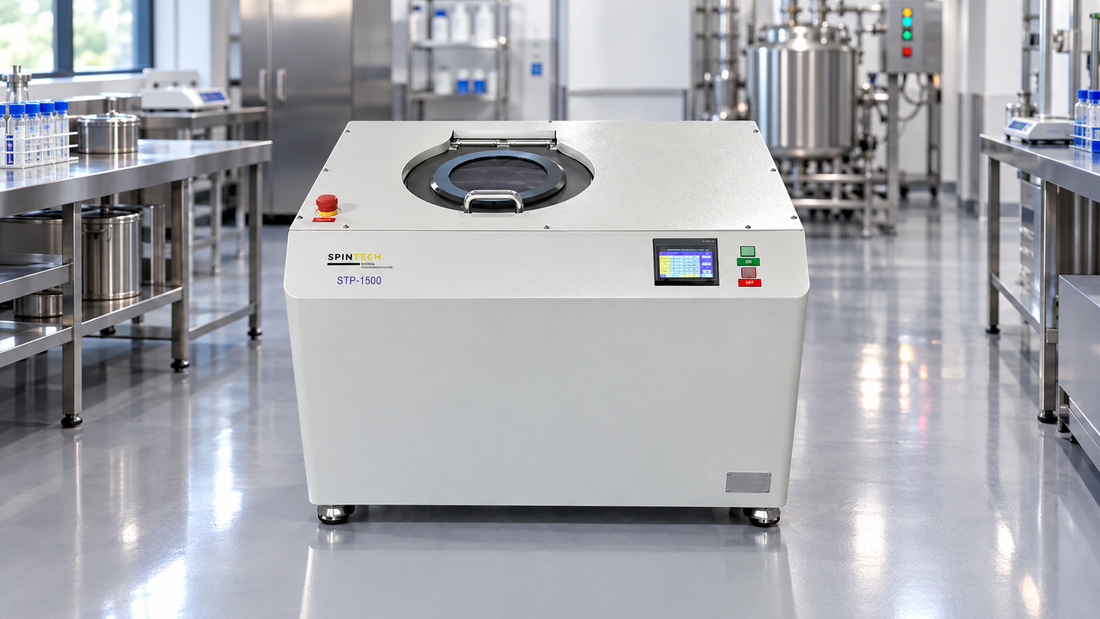

Review the Spin Tech STP-1500 Centrifuge as one reference point for a planetary processing workflow. Ask for a material trial using your actual container and target result, and record the conditions needed to reproduce it. When the machine, recipe, loading method, and safety checks are designed together, a planetary centrifuge becomes a practical foundation for consistent industrial processing.
